A box and whisker plot SAT question usually tests whether you can read data clearly, compare values, and understand how a distribution is spread. These questions may look simple at first, but many students lose points because they confuse the median with the mean, the range with the interquartile range, or the endpoints of the graph with the values inside the box.
In this guide, you will learn how to read a box and whisker plot question step by step, how to solve a SAT-style worked example, which common mistakes to avoid, and how to practice with targeted questions. The goal is not just to memorize the parts of the graph, but to understand exactly what the question is asking and choose the correct answer with confidence.
Box and Whisker Plot SAT Question: What It Tests
A box and whisker plot SAT question tests your ability to read and interpret a data distribution. Instead of asking you to calculate from a long list of numbers, the question usually gives you a visual summary of the data and asks you to identify or compare key values.
The main parts you need to recognize are:
Minimum: the lowest value in the data set. It is shown at the end of the left whisker.
First quartile: the value that marks the lower 25% of the data. It is usually the left edge of the box.
Median: the middle value of the data set. It is shown by the line inside the box.
Third quartile: the value that marks the lower 75% of the data. It is usually the right edge of the box.
Maximum: the highest value in the data set. It is shown at the end of the right whisker.
Range: the difference between the maximum and the minimum.
Interquartile range: the difference between the third quartile and the first quartile.
On the SAT, the most important skill is not simply naming these parts. You need to understand what each part tells you about the spread of the data. For example, the range tells you how far apart the lowest and highest values are, while the interquartile range tells you how spread out the middle 50% of the data is.
How to Read a Box and Whisker Plot on the SAT
To solve a box and whisker plot question on the SAT, start by identifying the five-number summary: minimum, first quartile, median, third quartile, and maximum. Once you know what each part of the graph represents, most questions become much easier to answer.
The key is to read the graph carefully before doing any calculation. Many wrong answers come from using the wrong value or confusing two different measures of spread.
Minimum, Median, and Maximum
The minimum is the lowest value in the data set and appears at the far left end of the plot. The maximum is the highest value and appears at the far right end.
The median is the line inside the box. It represents the middle value of the data set, not the average. This is one of the most common mistakes on SAT questions: if the question asks for the median, use the line inside the box, not the midpoint between the minimum and maximum.
First Quartile and Third Quartile
The first quartile is the left edge of the box. It shows the value below which about 25% of the data fall.
The third quartile is the right edge of the box. It shows the value below which about 75% of the data fall.
Together, the first and third quartiles show the middle 50% of the data. On the SAT, this is important because questions often ask how spread out the central part of the data set is.
Range vs Interquartile Range
The range measures the spread of the entire data set.
Range = maximum − minimum
The interquartile range, often called the IQR, measures the spread of the middle 50% of the data.
Interquartile range = third quartile − first quartile
Do not confuse these two. If a SAT question asks for the range, use the two ends of the whiskers. If it asks for the interquartile range, use only the two edges of the box.
Box and Whisker Plot SAT Question: Worked Example
Here is a SAT-style box and whisker plot question.

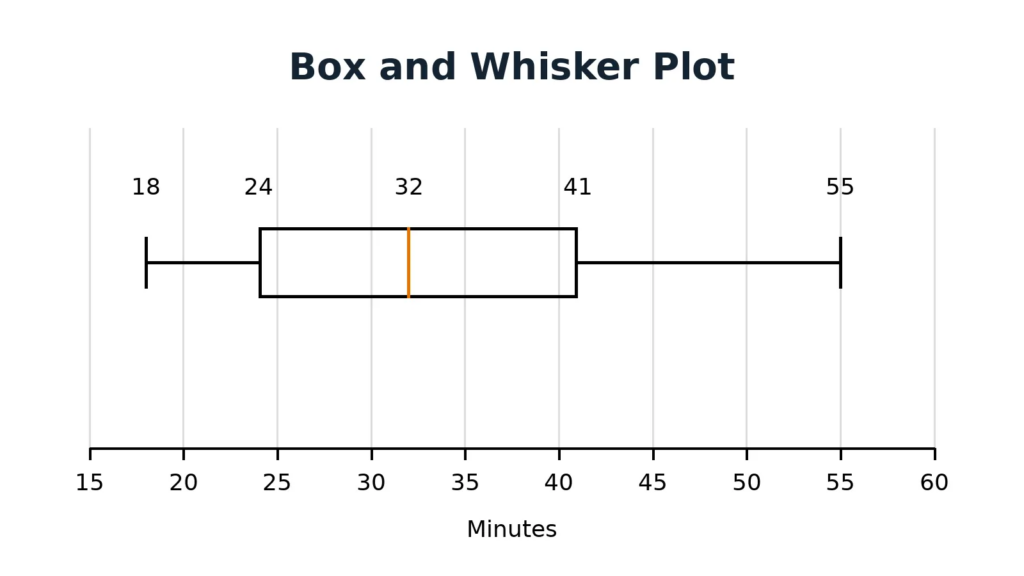

A box and whisker plot shows the number of minutes that a group of students spent completing a math assignment.
From the plot, we can read these values: the minimum is 18, the first quartile is 24, the median is 32, the third quartile is 41, and the maximum is 55.
Based on the box and whisker plot, what is the interquartile range of the data?
A. 14 B. 17 C. 23 D. 37
Step-by-Step Solution
The question asks for the interquartile range, not the full range of the data.
The interquartile range measures the spread of the middle 50% of the data. To find it, subtract the first quartile from the third quartile.
Interquartile range = third quartile − first quartile
In this question:
Third quartile = 41 First quartile = 24
So:
41 − 24 = 17
Correct Answer
The correct answer is B. 17.
Why This Answer Is Correct
The interquartile range only uses the two edges of the box: the first quartile and the third quartile. It does not use the minimum or the maximum.
In this example, the middle 50% of the students spent between 24 minutes and 41 minutes completing the assignment. The difference between those values is 17 minutes, so the interquartile range is 17.
Common Trap
The most likely mistake is choosing D. 37.
That answer comes from subtracting the minimum from the maximum:
55 − 18 = 37
But that gives the range, not the interquartile range. On a box and whisker plot SAT question, always check whether the problem is asking for the full spread of the data or only the spread of the middle 50%.
Common Mistakes in Box and Whisker Plot SAT Questions
Box and whisker plot SAT questions are usually not difficult because of the calculations. They become difficult when students misread the graph or use the wrong part of the plot. Here are the most common mistakes to avoid.
Mistake 1: Reading the Middle Line as the Mean
The line inside the box represents the median, not the mean.
This is important because the SAT may ask you to identify the middle value of the data set. In a box and whisker plot, the middle value is shown directly by the median line. You do not need to add values or divide by the number of data points.
If the question asks for the median, look at the line inside the box.
Mistake 2: Confusing Range and Interquartile Range
The range and the interquartile range measure two different things.
The range measures the spread of the entire data set:
Range = maximum − minimum
The interquartile range measures the spread of the middle 50% of the data:
Interquartile range = third quartile − first quartile
A common wrong answer comes from using the minimum and maximum when the question asks for the interquartile range. Before calculating, always check whether the question is asking about the full data set or only the middle 50%.
Mistake 3: Thinking Each Section Has the Same Numerical Distance
A box and whisker plot divides the data into four parts, and each part contains about 25% of the data. However, that does not mean each part has the same numerical width.
For example, the distance from the minimum to the first quartile may be small, while the distance from the third quartile to the maximum may be much larger. This tells you that the data are more spread out in one part of the distribution.
On the SAT, pay attention to the actual numbers on the scale, not just the visual sections of the plot.
Mistake 4: Ignoring Comparisons Between Two Distributions
Some SAT questions show two box and whisker plots and ask you to compare them. In that case, do not focus on only one value.
Look carefully at what the question asks you to compare:
the median;
the range;
the interquartile range;
the maximum or minimum;
the overall spread of the data.
For example, one data set may have a higher median, while the other has a larger range. Those are two different conclusions. A correct answer must match the specific comparison requested by the question.
Box and Whisker Plot SAT Practice Questions
Use these SAT-style practice questions to check whether you can read the graph values correctly and avoid the most common traps.
Question 1
A box and whisker plot has the following values:
Minimum: 12
First quartile: 18
Median: 25
Third quartile: 31
Maximum: 44
What is the interquartile range of the data?
A. 13 B. 19 C. 25 D. 32
Answer
A. 13
Explanation
The interquartile range is the difference between the third quartile and the first quartile.
31 − 18 = 13
The answer is not 32, because 44 − 12 gives the range, not the interquartile range.
Question 2
Two box and whisker plots summarize the scores of two groups of students.
Group A
Minimum: 60
First quartile: 68
Median: 74
Third quartile: 82
Maximum: 90
Group B
Maximum: 96
Minimum: 55
First quartile: 70
Median: 78
Third quartile: 84
Which statement is true?
A. Group A has the higher median. B. Group B has the higher median and the larger range. C. Group A has the larger interquartile range. D. Both groups have the same range.
Answer
B. Group B has the higher median and the larger range.
Explanation
Group B has a median of 78, while Group A has a median of 74. So Group B has the higher median.
Now compare the ranges:
Group A range = 90 − 60 = 30 Group B range = 96 − 55 = 41
Group B also has the larger range. Therefore, the correct answer is B.
